Tubing

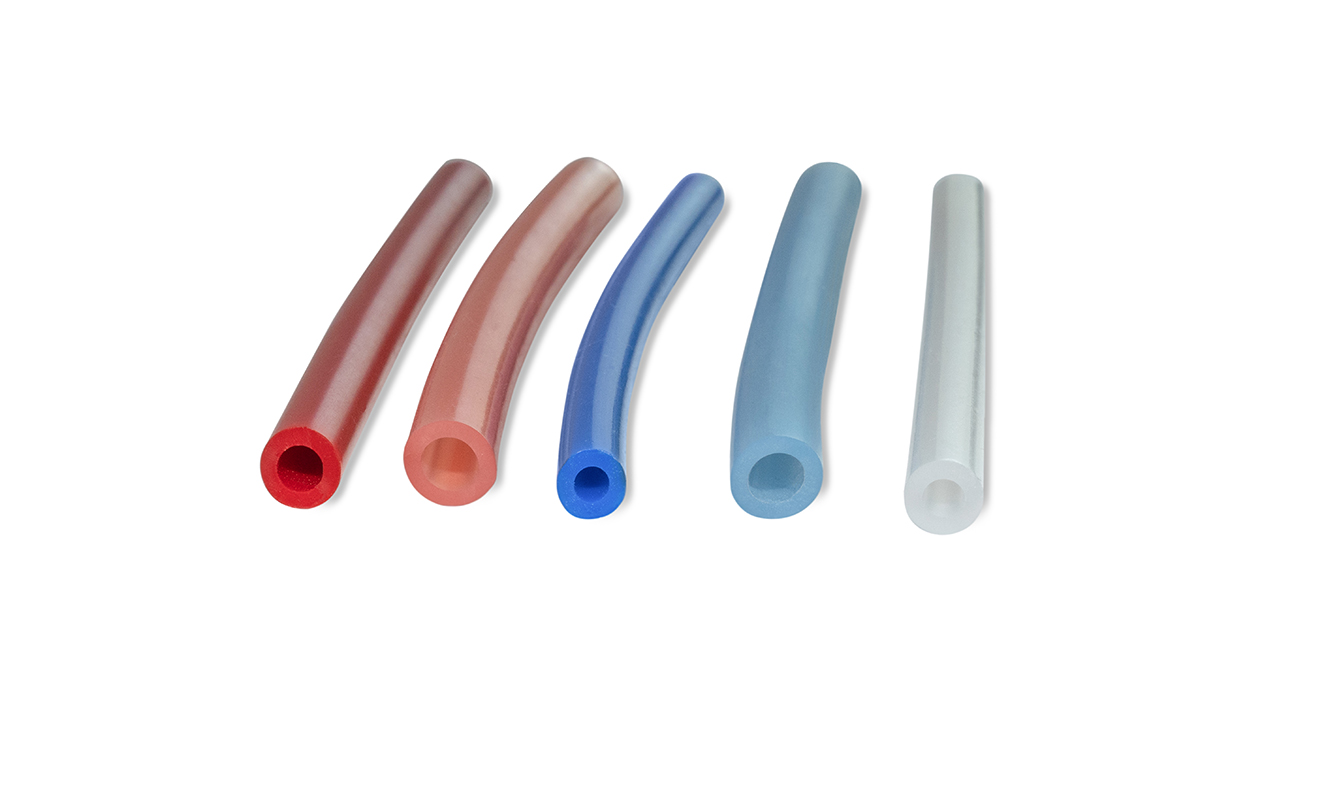

Our silicone rubber tubes are available in a wide range of colours and hardness, with various technical properties meeting the requirements of FDA177.2600, BfR, USP, Euro. Pharmacopoeia and ISO 10993.

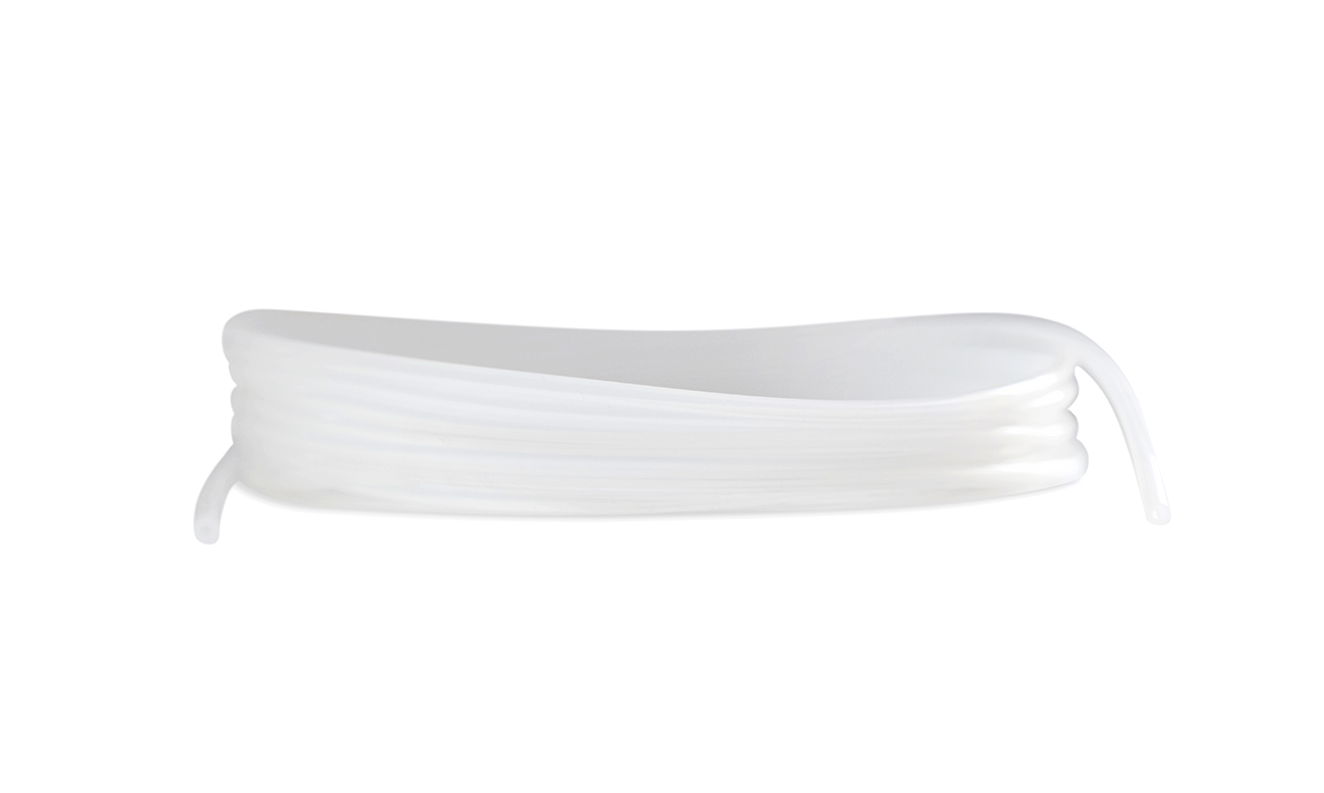

As a stock line, we have a transparent quality in 60 shore A, available in 25-meter rolls, prepacked in sealed bags in a wide range of sizes. Other qualities and sizes can be manufactured to specified orders.
Standard sizes, mm:
| 1,00 x 2,00 | 3,00 x 5,00 | 5,00 x 8,00 | 7,00 x 9,00 | 9,00 x 11,00 |
| 1,00 x 3,00 | 3,00 x 6,00 | 5,00 x 9,00 | 7,00 x 10,00 | 9,00 x 13,00 |
| 1,00 x 4,00 | 3,00 x 7,00 | 5,00 x 10,00 | 7,00 x 11,00 | 10,00 x12,00 |
| 2,00 x 3,00 | 4,00 x 6,00 | 6,00 x 8,00 | 7,00 x 13,00 | 10,00 x 14,00 |
| 2,00 x 4,00 | 4,00 x 7,00 | 6,00 x 9,00 | 8,00 x 10,00 | 10,00 x 15,00 |
| 2,00 x 5,00 | 4,00 x 8,00 | 6,00 x 10,00 | 8,00 x 12,00 | 10,00 x 16,00 |
| 2,00 x ,006 | 5,00 x 7,00 | 6,00 x 12,00 | 8,00 x 14,00 | 12,00 x 16,00 |
Special tubing

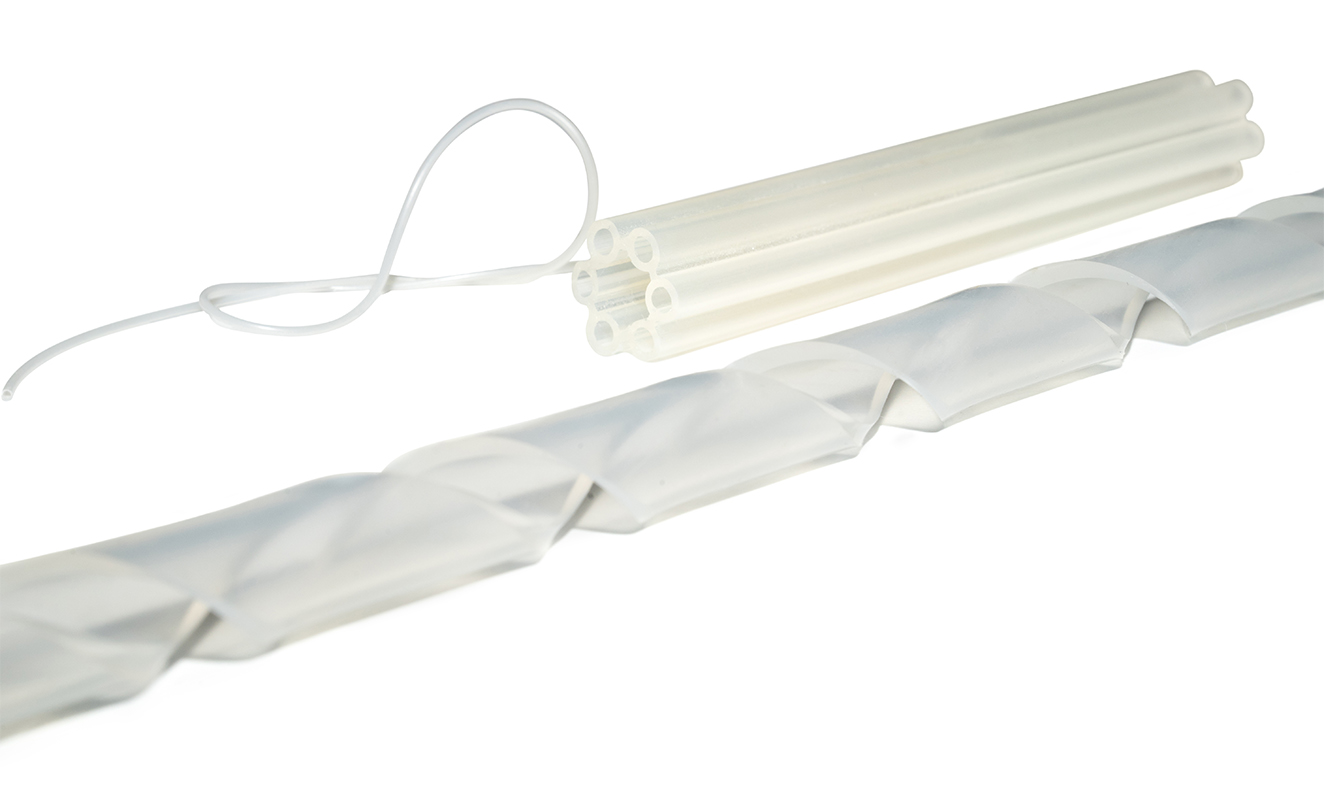

Sometimes tubing needs to manufactured using special requirements. These could be multi- passage tubing (two or more internal passages) which can carry different liquids at the same tube. We can also extrude several tubes together in the same or different sizes.
Platinum catalysed tubing
Platinum catalysis can provide the solution to the production of tubing with the absolute minimal of odour and taste, in compliance with FDA, BfR, USP, Euro-Pharmacopoeia and ISO 10993 requirements.
Tubing for general applications
These tubes can be utilised in the food, mechanical and electrical equipment industries or any other demanding an environment involving exposure to heat, UV-radiation, etc.
